Universal Remote Asset Condition Monitoring
The TrackSense Remote Condition Monitoring system is the culmination of over 30 years providing railways around the world with industry leading monitoring solutions.
- Automatic machine learning
- Advanced predictive analytics and fault finding
- Modular, cost effective solution
- Simple and quick installation
- Near Limitless applications
On behalf of our whole team, welcome to TrackSense.
The Future of Condition Monitoring
TrackSense enables you to quickly take charge of the health and performance of your network assets.
Simple to install and packed full of features that will empower and assist you to make better decisions.

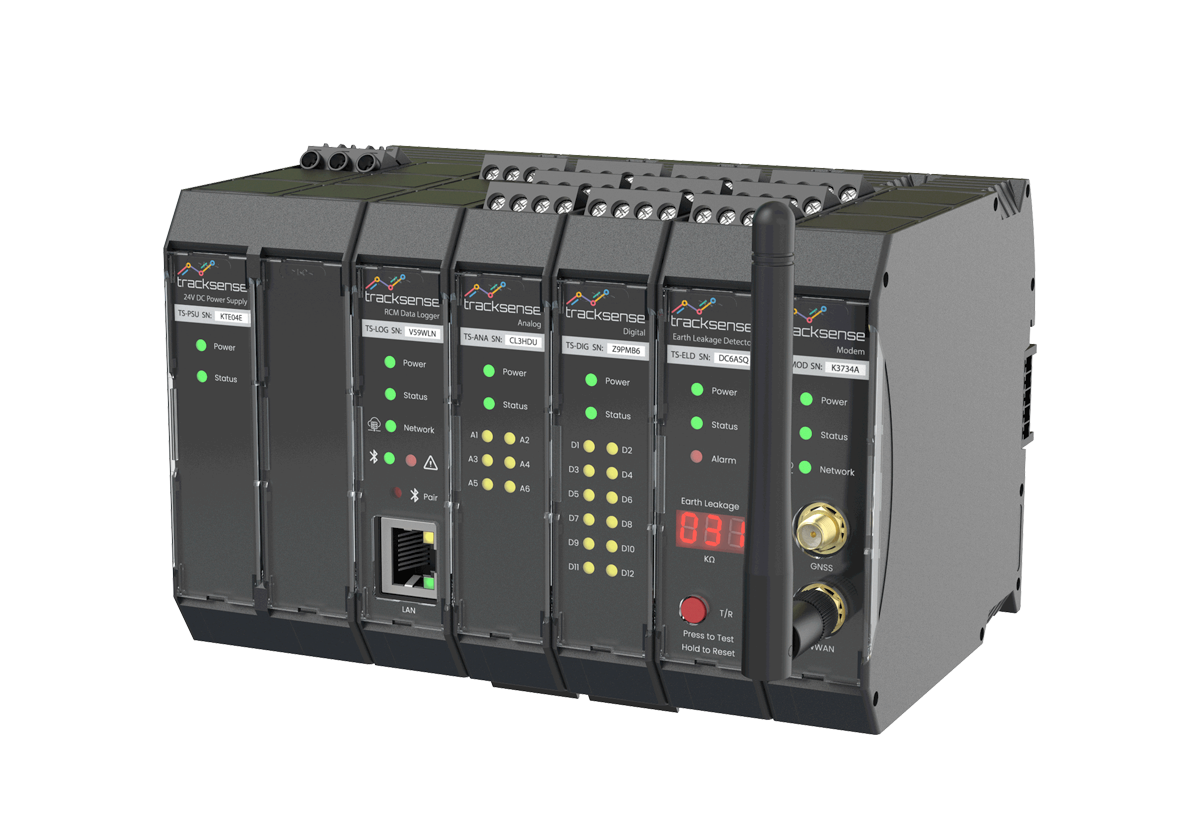

Modular Flexibility

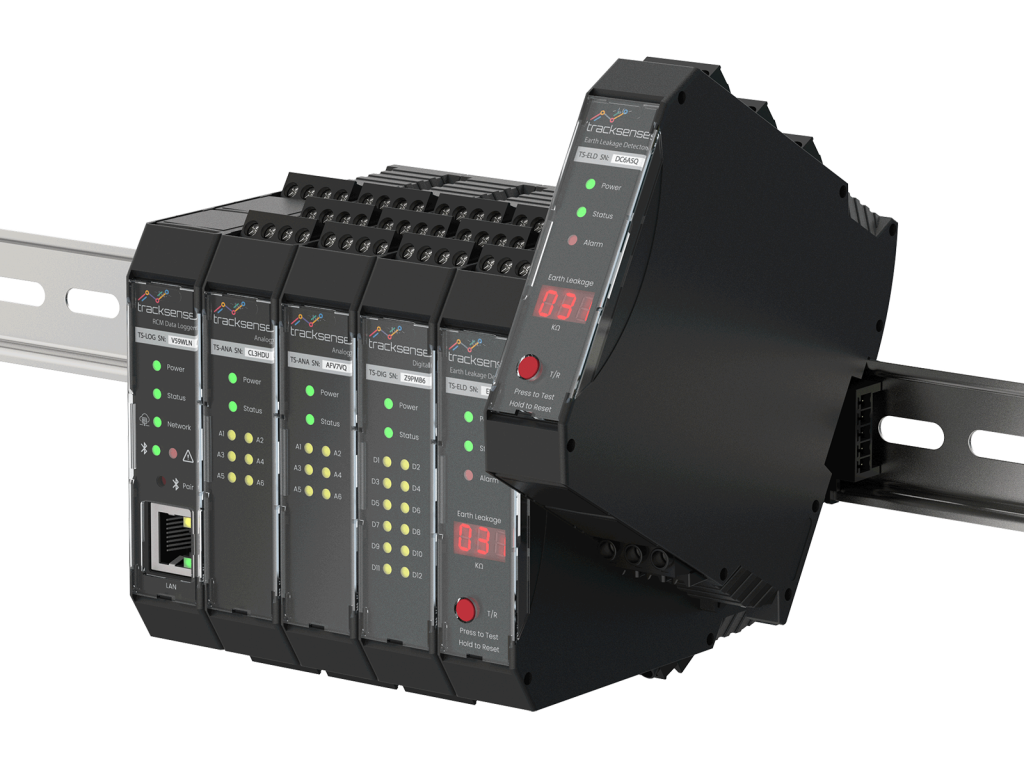

TrackSense was designed with you and your organisation in mind. The DIN mounted backbone design allows you to expand, upgrade and replace modules quickly and easily – usually even without any system downtime.
TrackSense’ modular design means you can purchase only what you need and expand your site with more I/O extender cards at any time to monitor more/different assets.
Whenever we bring out a new module, your current hardware won’t be made redundant – you can simply slot the new module in and upgrade your site.
Hardware repairs and replacements are made simple and generally won’t even require any site down-time. All you need to do is unplug the damaged module and replace it with new/repaired hardware.

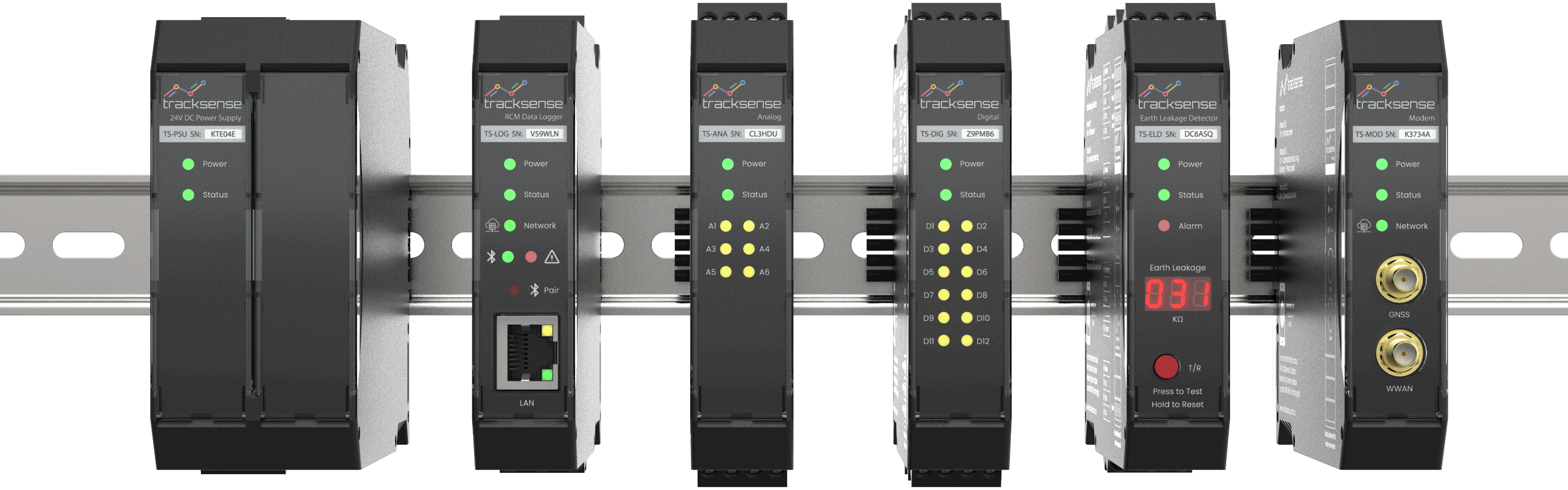

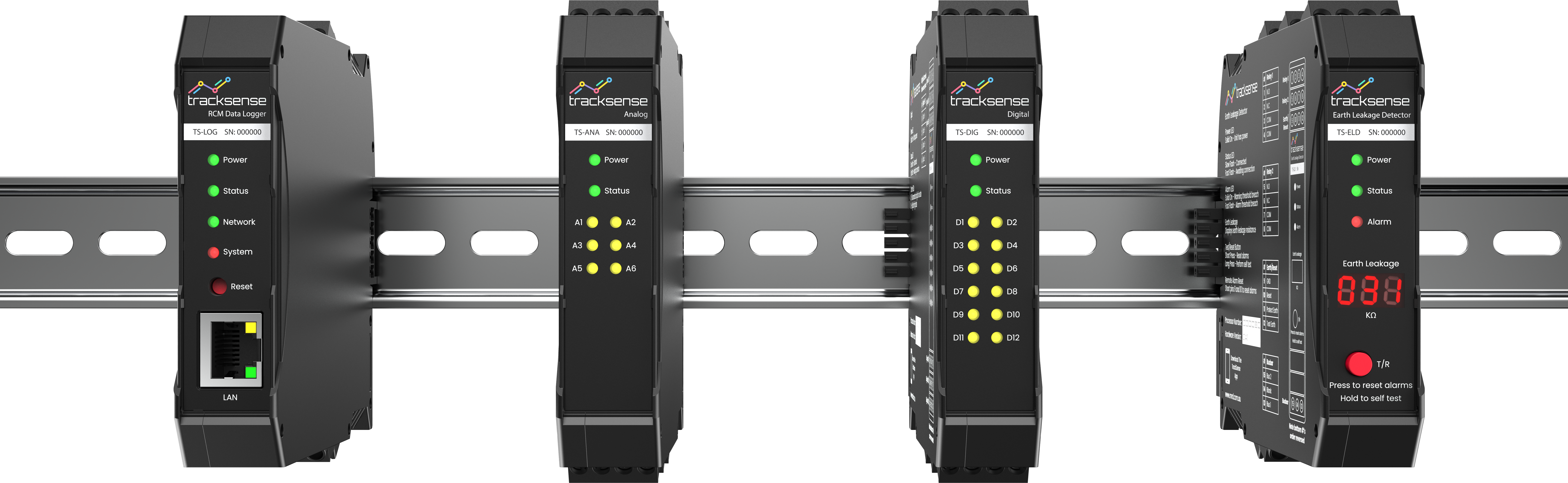

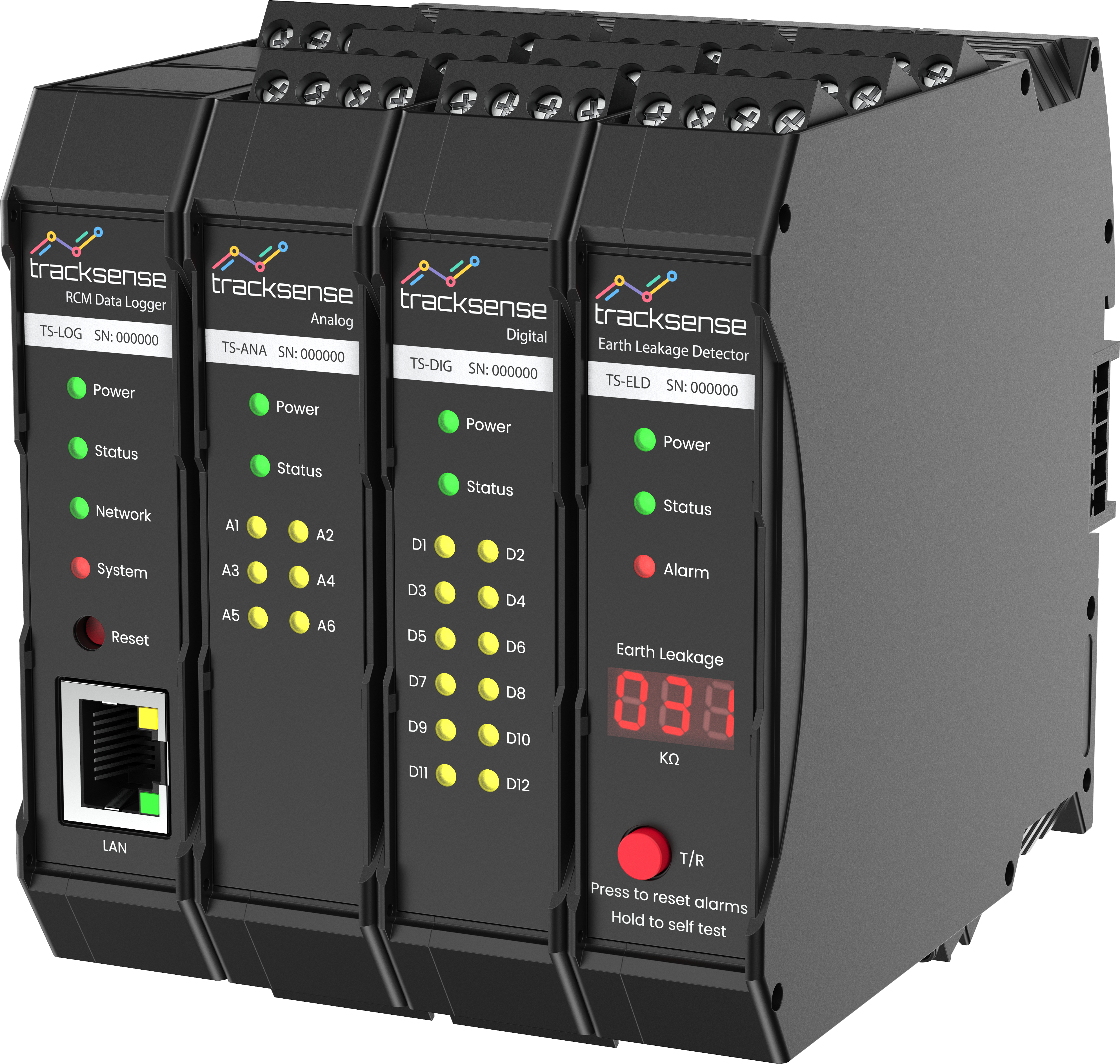

Modules
TS-LOG
Processing Unit
TS-ANA
Analog Extender

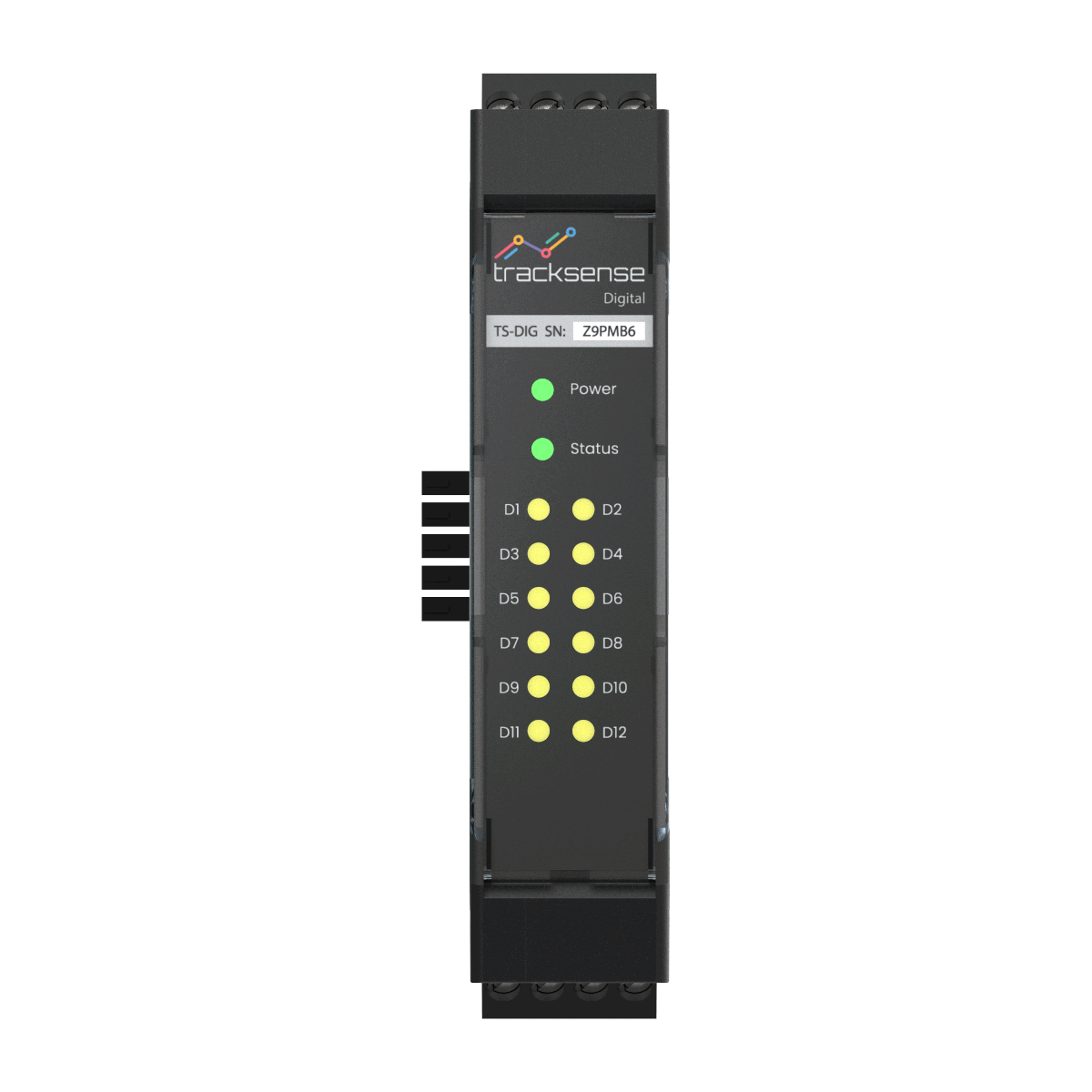

TS-DIG
Digital Extender

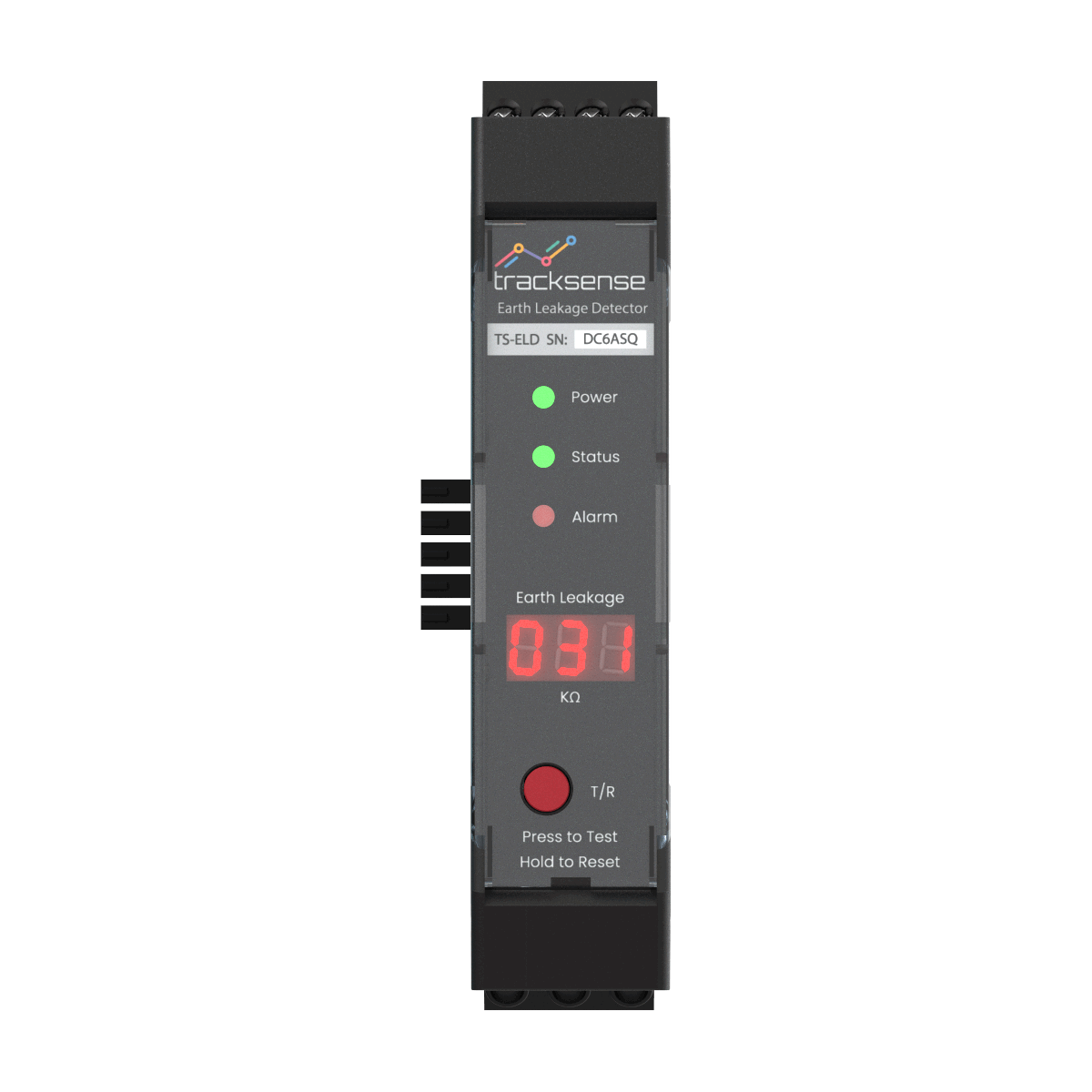

TS-ELD
Earth Leakage Detector

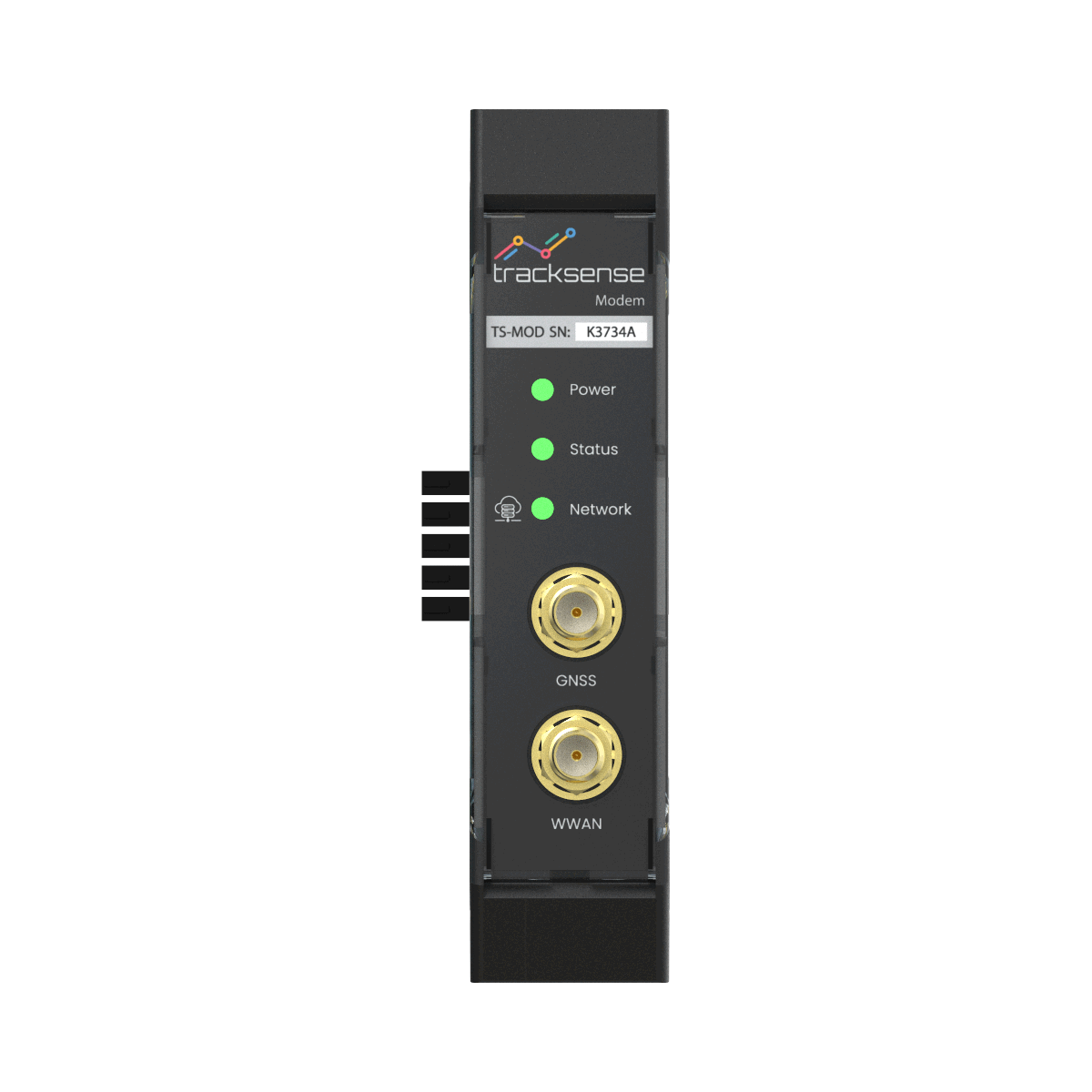

TS-MOD
Modem
TrackSense Cloud Platform
The TrackSense Cloud enables you to oversee the real-time health and predicted degradation of all assets in your network from anywhere.
Using industry leading data analysis, TrackSense gives you deep insights and allows you to improve the efficiency of your railway network.
The TrackSense Cloud Server is now available on Android platform for all customers

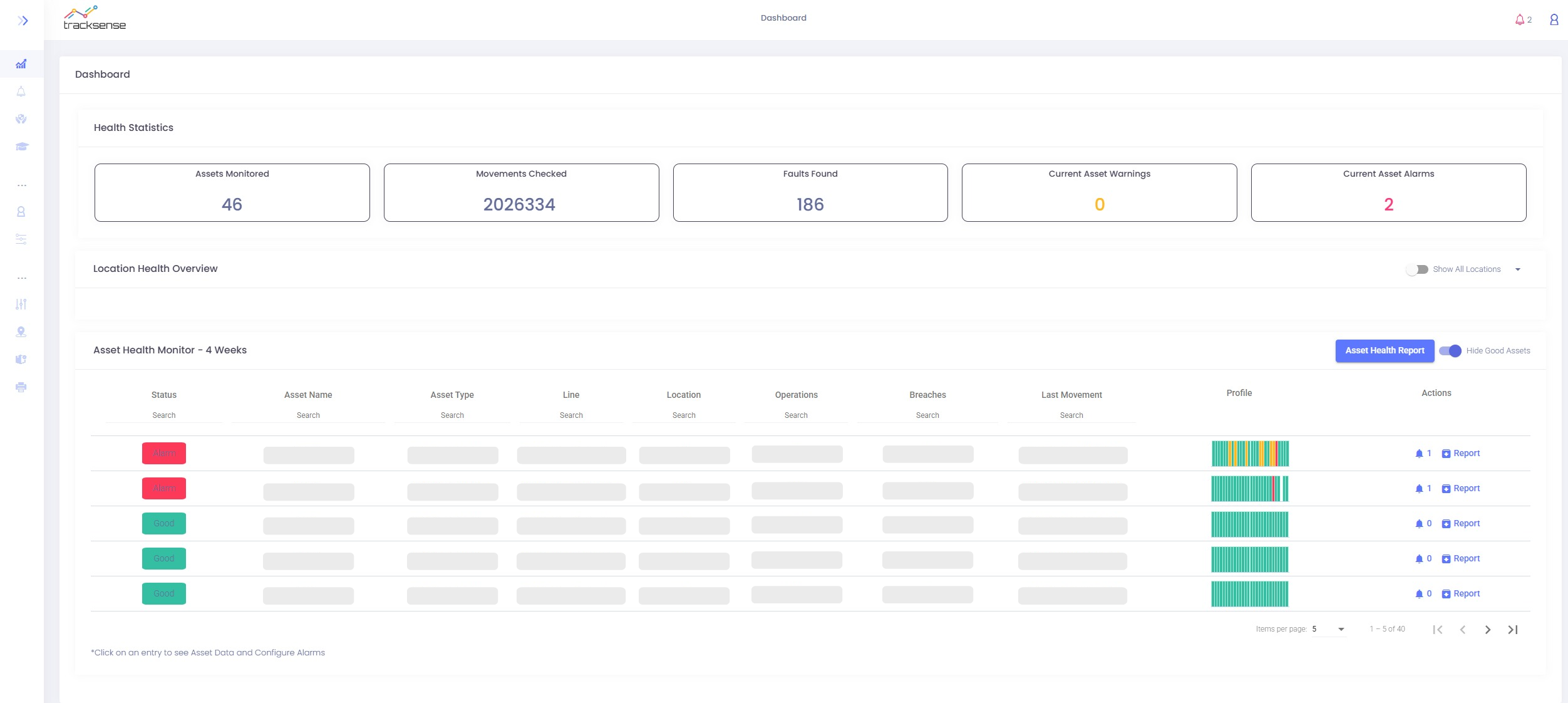

Asset Health Overview
TrackSense Cloud gives you oversight of your system's health / performance from anywhere

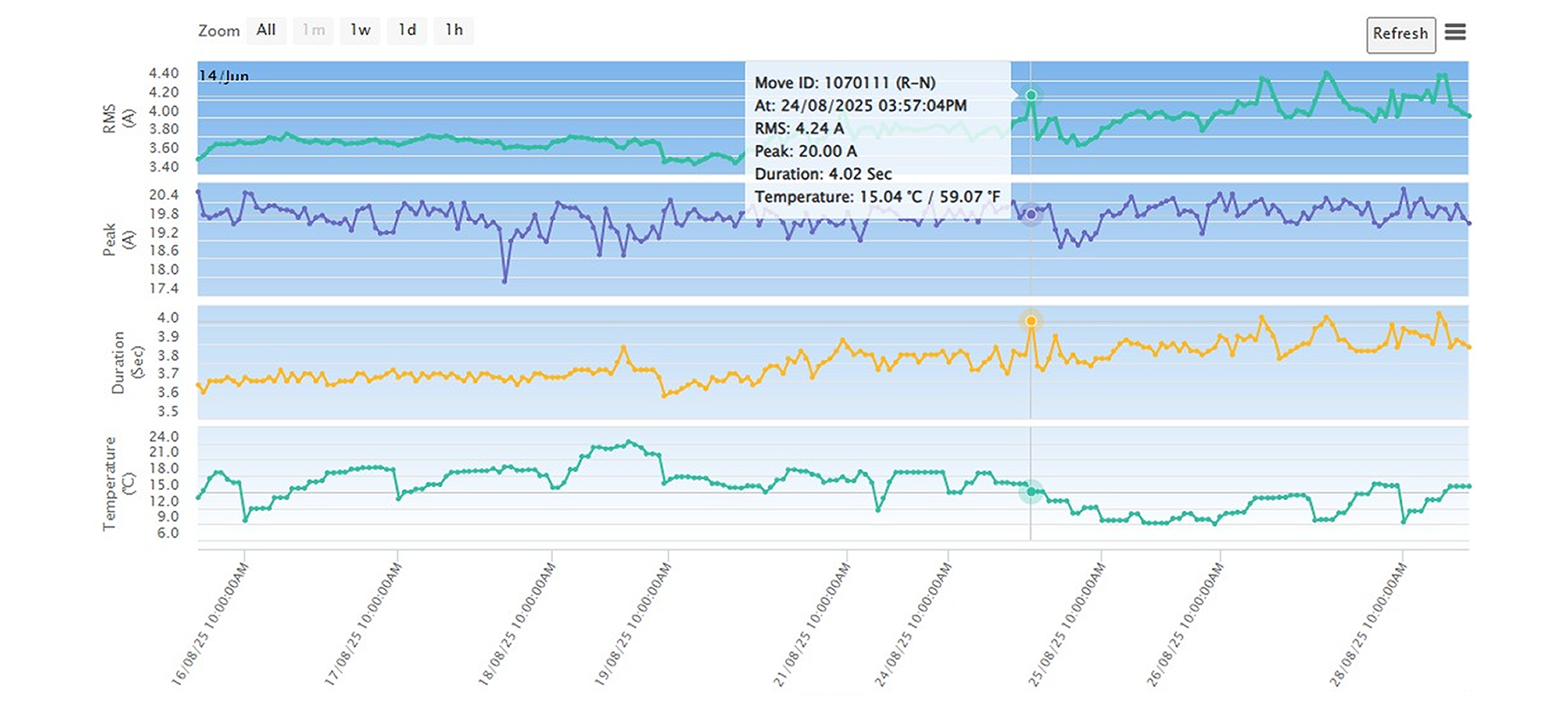

Asset trend view for predictive alerts and monitoring gradual performance degradation
TrackSense Cloud gives you oversight of your system's health / performance from anywhere
TrackSense Cloud
Gives you oversight of your system's health / performance from anywhere
Asset trend view
For predictive alerts and monitoring gradual performance degradation

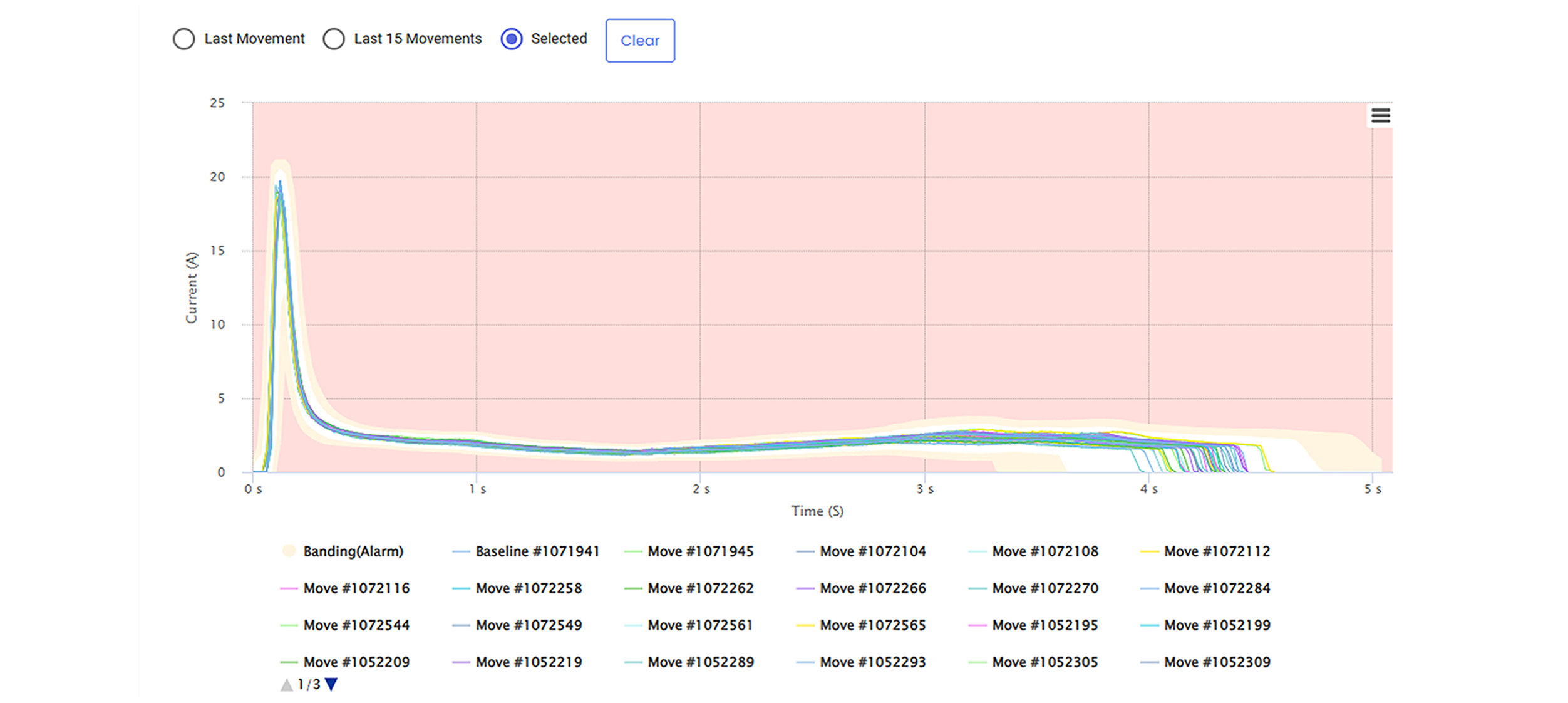

View and compare
Individual movement's signatures for analytics, alerts and fault finding
TrackSense Cloud Features
Your Assets, Your Data, Your way
Easy To Use Data Viewer
Search for any asset, measurement, logger or location in one place
Easy To Use And Understand
User friendly interface, making the data easy to understand with no training required
Access Anywhere, Anytime
Log into the cloud from any device, anytime with maximum security
Smart Alerts & Notifications
Autotune alerts and receive notifications in real-time when the rules are triggered
Comprehensive & Automated Reports
Generate reports on anything in the system by simply selecting your desired options
Task Management & KPI Reporting
Harness the power of human data input and keep track of your teams
TrackSense smart sensors can monitor almost anything
TrackSense was designed to be modular, flexible and stackable, allowing your site to be as big, or as small, as you need it to be. With Industry Standard sensors, TrackSense allows you to easily adapt your monitoring to your site’s needs and environment.
The application setups described below are an example only. Every sites requirements may be different and multiple applications can be combined to be monitored within a single installation.
Simply select the appropriate sensor type for your application, connect it and start viewing your data.
Points Machine Monitoring
TrackSense Processor Module
TrackSense Analog Extender
4-20mA Current Sensor
Optional Extras
ModBus Ambient Temperature Sensor
TrackSense Digital Extender
Digital Rail Temperature Sensor

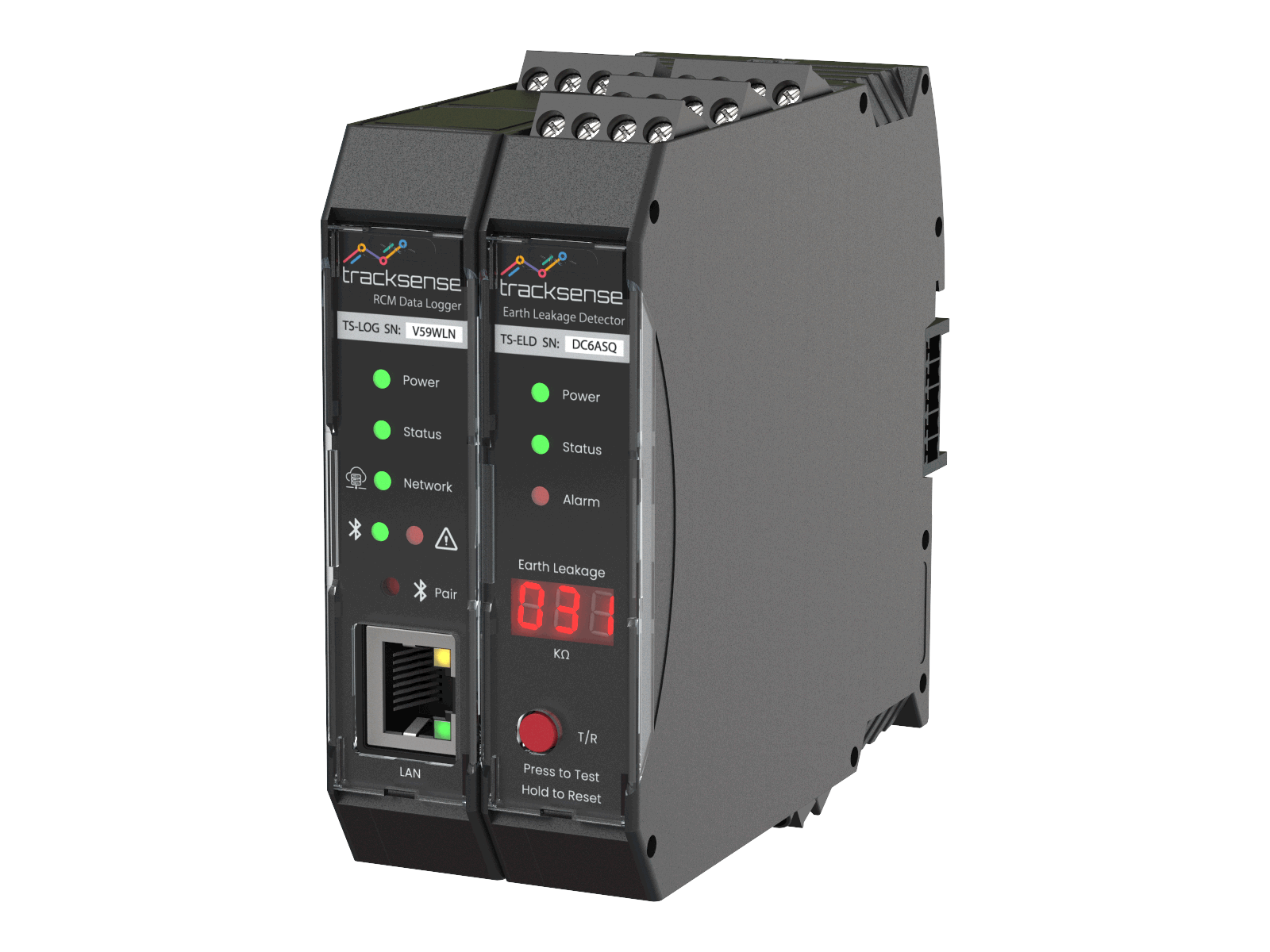

Earth Insulation Monitoring
TrackSense Processor Module
TrackSense ELD Module
Optional Extras
Additional TrackSense EIM Modules

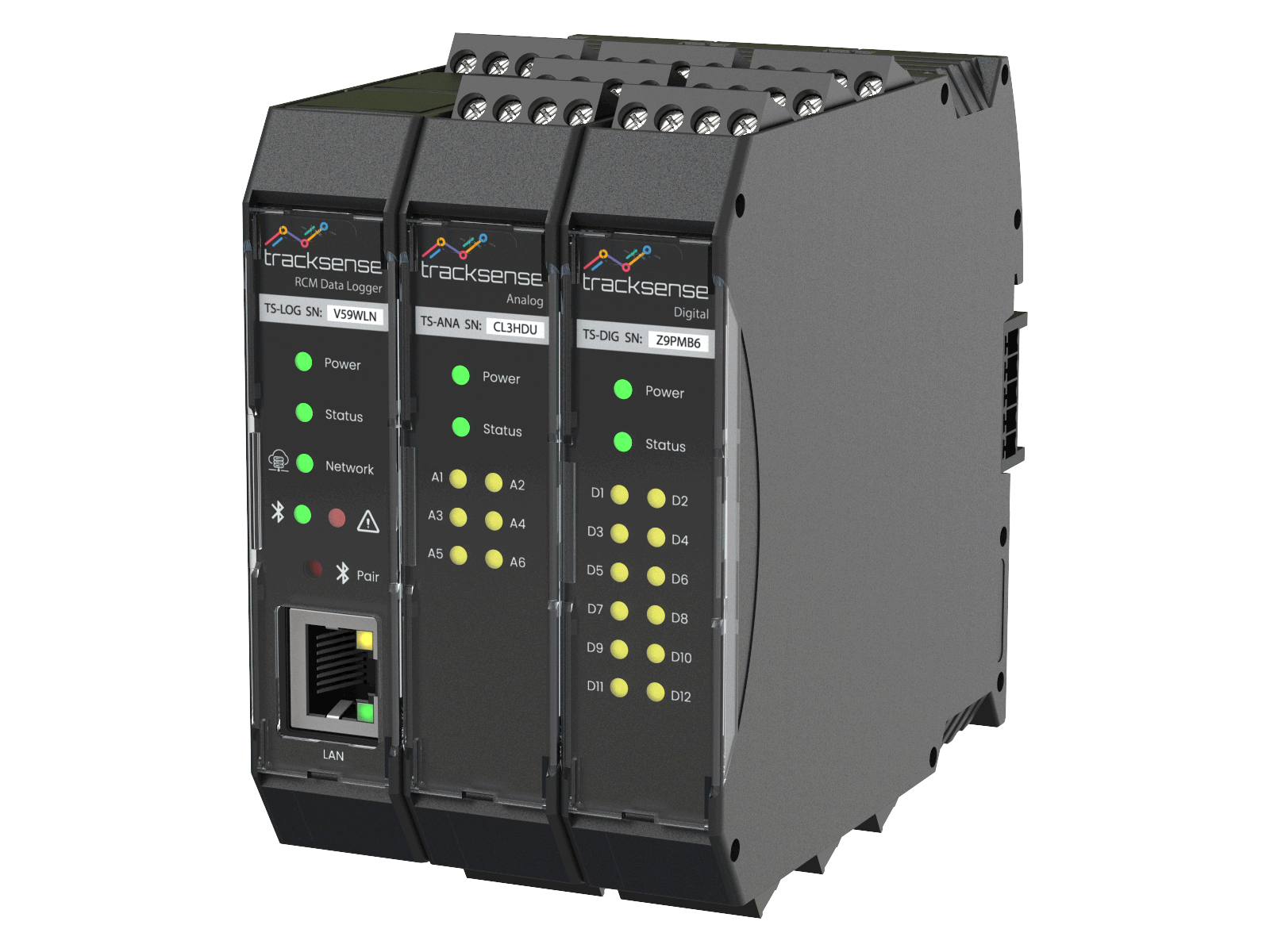

Battery Bank Monitoring
TrackSense Processor Module
TrackSense Analog Extender
TrackSense Digital Extender
Optional Extras
Current Sensor
Voltage Sensor
Temperature Sensor
Track Circuit Monitoring
TrackSense Processor Module
TrackSense Track Circuit Interpreter
TrackSense was designed to automatically identify patterns and learn healthy asset performance signatures from almost any sensor type available, making the possibilities endless.
For help setting up a new asset type, please contact MRD. We’re always here to help you.
FAQ
TrackSense’ modular design means you can purchase only what you need and expand your site with more I/O extender cards at any time to monitor more/different assets.
Whenever we bring out a new module, your current hardware won’t be made redundant – you can simply slot the new module in and upgrade your site.
Hardware repairs and replacements are made simple and generally won’t even require any site down-time. All you need to do is unplug the damaged module and replace it with new/repaired hardware.
